Настольные, настенные блоки питания переменного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

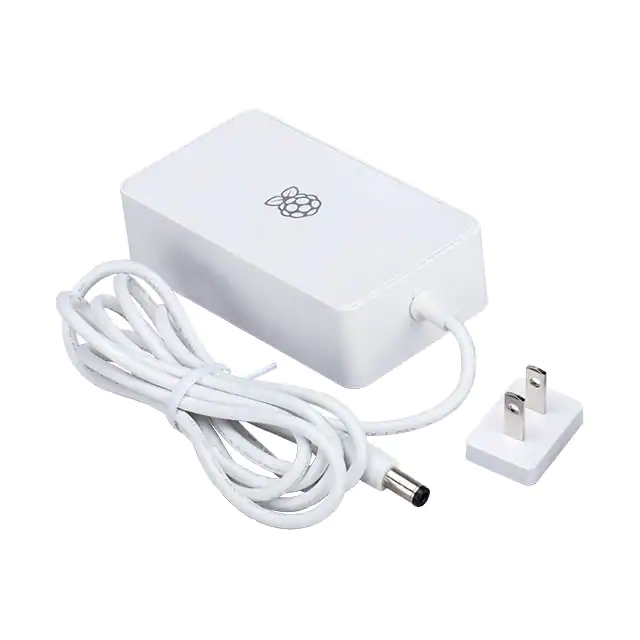

SC0747AC/DC WALL MOUNT ADAPTER 8V 48W |
4,914 |
|
Техническая документация |
- | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 96 ~ 264 VAC | 8V | 6A | 48 W | 100mW | Positive Center | ITE (Commercial) | 87.77% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 3.62" L x 2.01" W x 1.00" H (92.0mm x 51.0mm x 25.5mm) | - | - |
|
WSU090-2500-RAC/DC WALL MOUNT ADAPTER 9V 23W |
3,499 |
|
Техническая документация |
WSU | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | cETLus | - |
|
TE20A1203F01AC/DC DESKTOP ADAPTER 12V 18W |
3,198 |
|
Техническая документация |
TE20 (20W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, CSA, UL | - |
|

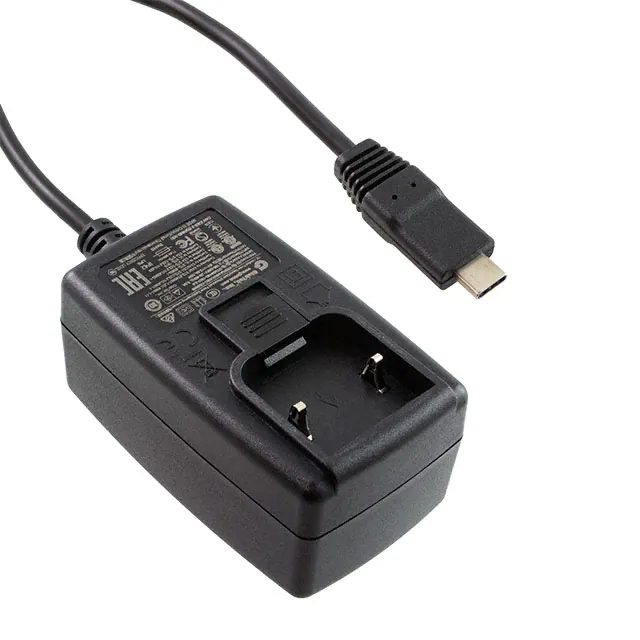

WR9QA3600USBC-CIMR6BAC/DC WALL MOUNT ADAPTER 5V 18W |
1,452 |
|
Техническая документация |
- | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 3.6A | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | USB C | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 61558-1; 62368-1 |
|
GSM18U12-P1JAC/DC WALL MOUNT ADAPTER 12V 18W |
4,721 |
|
Техническая документация |
GSM18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | - |
.jpg)
|

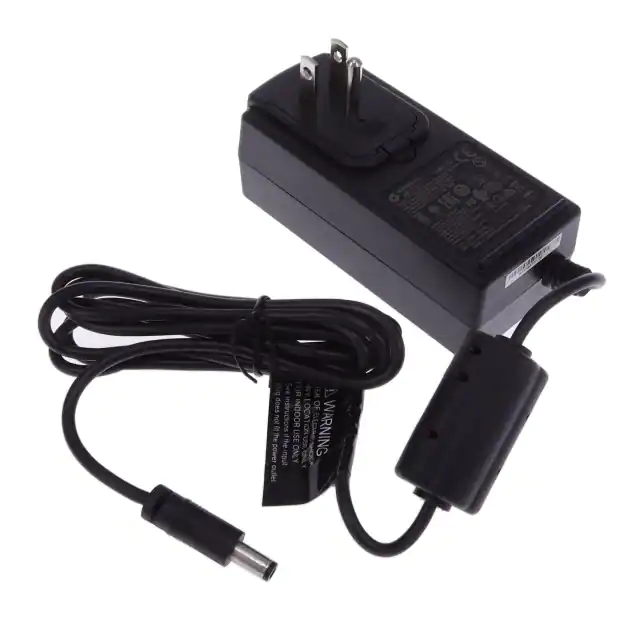

RR9LE2500LCPCIM(R6B)AC/DC DSKTP/WALL MT ADPT 12V 30W |
3,863 |
|
Техническая документация |
GTM96300-3014.5-2.5-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.02" L x 1.87" W x 1.44" H (102.2mm x 47.5mm x 36.7mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | 60335-1; 60601-1; 60950-1; 62368-1 |
|
VEL24US120-EU-JAAC/DC WALL MOUNT ADAPTER 12V 24W |
1,177 |
|
Техническая документация |
VEL24 (24W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | CB, TUV, UL | 62368-1 |
|
GSM25B12-P1JAC/DC DESKTOP ADAPTER 12V 25W |
1,975 |
|
Техническая документация |
GSM25B (25W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 2.08A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV | - |
.JPG)
|

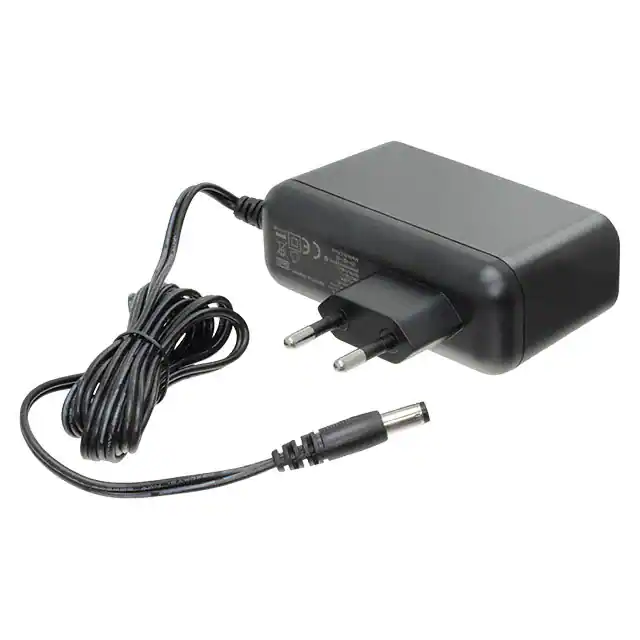

WR9ME3000CCP-F(R6B)AC/DC WALL MOUNT ADAPTER 12V 36W |
1,623 |
|
Техническая документация |
GT-83082-3612-W2E | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -5°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | CEE 7/16 | - | 3.70" L x 1.34" W x 3.62" H (94.0mm x 34.0mm x 91.9mm) | CB, CE, SIQ, UKRSepro | 60950-1 |
|
TR9CJ4340LCP-N-RVB(RAC/DC DESKTOP ADAPTER 13.8V 60W |
4,083 |
|
Техническая документация |
GT-41132-6024-10.2-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 13.8V | 4.34A | 60 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.50m) | IEC 320-C14 | - | - | CB, CCC, CE, cULus, EAC, IRAM, NrCAN, PSE, UKCA, Ukraine, VCCI, WEEE, RCM | 60950-1 |
|
WSX240-1000AC/DC WALL MOUNT ADAPTER 24V 24W |
1,704 |
|
Техническая документация |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | - |
|
GST18A15-P1JAC/DC DESKTOP ADAPTER 15V 18W |
4,130 |
|
Техническая документация |
GST18A (18W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 1.2A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|
|
GST18A28-P1JAC/DC DESKTOP ADAPTER 28V 18W |
1,002 |
|
Техническая документация |
GST18A (18W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 28V | 640mA | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|
WDU24-500AC/DC WALL MOUNT ADAPTER 24V 12W |
2,618 |
|
Техническая документация |
WDU | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 24V | 500mA | 12 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.15" L x 2.36" W x 1.89" H (80.0mm x 60.0mm x 48.0mm) | cUL, UL | - |
|
BB-RPS-V2-WR2-USAC/DC WALL MOUNT ADAPTER 12V 12W |
1,474 |
|
Техническая документация |
SYS1561 (12W) | Box | Active | North America | Wall Mount (Class II) | Cord | 90 ~ 264 VAC | 12V | 1A | 12 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Rectangular, 2 Position | 59" (1.50m) | NEMA 1-15P | - | 2.56" L x 1.18" W x 1.77" H (65.0mm x 30.0mm x 45.0mm) | BSMI, CB, CE, EAC, FCC, GS, PSE, RCM, SAA, UL | 60950-1 |
|
GST25A28-P1JAC/DC DESKTOP ADAPTER 28V 25W |
2,610 |
|
Техническая документация |
GST25A (25W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 28V | 890mA | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|

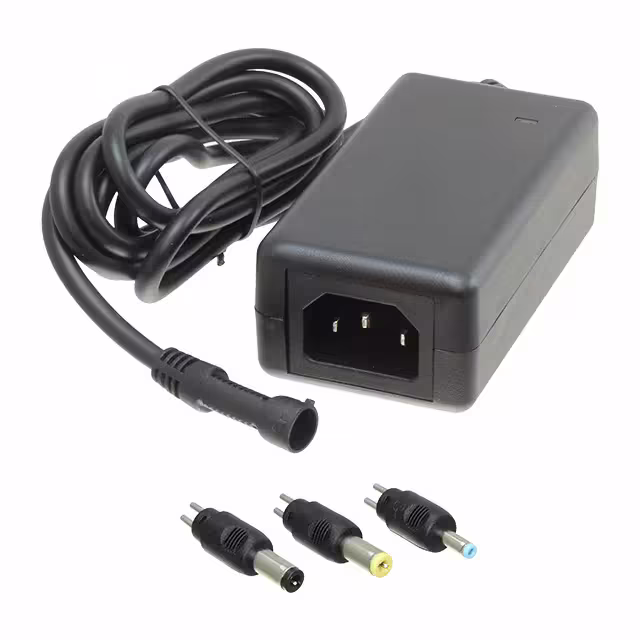

TR9CA3000T00-IMR6BAC/DC DESKTOP ADAPTER 5V 15W |
3,901 |
|
Техническая документация |
GTM96180-18VV-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C14 | - | 3.43" L x 1.85" W x 1.26" H (87.0mm x 47.0mm x 32.0mm) | BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
SDI12-12-UD-P5AC/DC DESKTOP ADAPTER 12V 12W |
1,142 |
|
Техническая документация |
SDI12-UD (12W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
ADT-060A24AB B-AAC/DC DESKTOP ADAPTER 24V 60W |
4,404 |
|
Техническая документация |
ADT (60W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 2.5A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -10°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 4.25" L x 1.81" W x 1.16" H (108.0mm x 46.0mm x 29.5mm) | BSMI, CB Scheme, CE, EN, KC, SIQ, UL | 50581; 55015; 55024; 61000-3-2; 61000-3-3; 61347-1; 61347-2-13; 62384 |
|
PPL36W-120L6AC/DC DESKTOP ADAPTER 12V 36W |
2,207 |
|
Техническая документация |
PPL36W-L6 (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | cULus, IEC | 62368-1 |
