Преобразователи переменного и постоянного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-150D-24-BAC/DC CONVERTER 24V 151W |
168 |
|
Техническая документация |
VGS-150D | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CE, cURus, EN, IEC, UL |
|

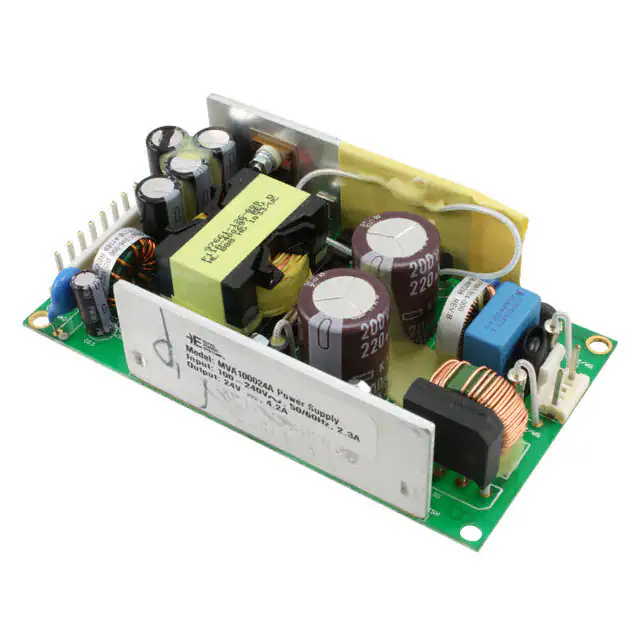

MVA100018AAC/DC CONVERTER 18V 100W |
345 |
|
Техническая документация |
MVA100 (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 18V | - | - | - | - | - | 5.6 A | - | - | - | - | - | 100W (120W Forced Air) | Medical | - | 91% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.10" H (114.3mm x 63.1mm x 28.5mm) | CB, CE, cTUVus |
|
LMF200-23B24AC/DC CONVERTER 24V 202W |
310 |
|
Техническая документация |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CCC, CE, cURus, UL |
|
|
LMF200-23B12AC/DC CONVERTER 12V 200W |
279 |
|
Техническая документация |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CCC, CE, cURus, UL |
|
LOF225-20B24AC/DC CONVERTER 24V 140W |
1,345 |
|
Техническая документация |
LOF225-20Bxx (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 5.83 A | - | - | - | - | - | 140W | Household Appliances, ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CE, cURus |
|
LOF225-20B12AC/DC CONVERTER 12V 140W |
1,090 |
|
Техническая документация |
LOF225-20Bxx (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 11.67 A | - | - | - | - | - | 140W | Household Appliances, ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CE, cURus |
|
LOF225-20B48AC/DC CONVERTER 48V 140W |
212 |
|
Техническая документация |
LOF225-20Bxx (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.91 A | - | - | - | - | - | 140W | Household Appliances, ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CE, cURus |
|
CFM100M090AC/DC CONVERTER 9V 101W |
204 |
|
Техническая документация |
CFM100M (100W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 11.2 A | - | - | - | - | - | 101W | ITE (Commercial), Medical | 5.656 kV | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) | CE, cURus, TUV |
|
|
CFM100M120AC/DC CONVERTER 12V 101W |
301 |
|
Техническая документация |
CFM100M (100W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 101W | ITE (Commercial), Medical | 5.656 kV | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) | CE, cURus, TUV |
|
LMF350-23B05UHAC/DC CONVERTER 5V 300W |
164 |
|
Техническая документация |
LMF350-23BxxUH (350W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | CCC, CE, cURus, EN, UKCA, UL |
|
ASM65-240-BNH-0F0AC/DC CONVERTER 24V 65W |
439 |
|
Техническая документация |
ASM30 | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 88% | -40°C ~ 80°C | - | - | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) | CB, CSA, cTUVus, TUV |
|
|
ASM65-150-BNH-0F0AC/DC CONVERTER 15V 65W |
157 |
|
Техническая документация |
ASM30 | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 4.33 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 88% | -40°C ~ 80°C | - | - | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) | CB, CSA, cTUVus, TUV |
|
MBC40-3000GAC/DC CNVRTR 5.2V 12.5V -12.8V |
3,661 |
|
Техническая документация |
MBC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 12.5V | -12.8V | - | - | - | 6 A | 1 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
MBC40-3003GAC/DC CONVERTER 3.3V 5.2V -12.8V |
2,649 |
|
Техническая документация |
MBC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 3.3V | 5.2V | -12.8V | - | - | - | 6 A | 3 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
LPS58AC/DC CONVERTER 48V 60W |
208 |
|
Техническая документация |
LPS50 (60W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | CB, CE |
|
CFM150M480AC/DC CONVERTER 48V 150W |
142 |
|
Техническая документация |
CFM150M (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 5.656 kV | 93% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) | CE, cURus, FCC, TUV |
|

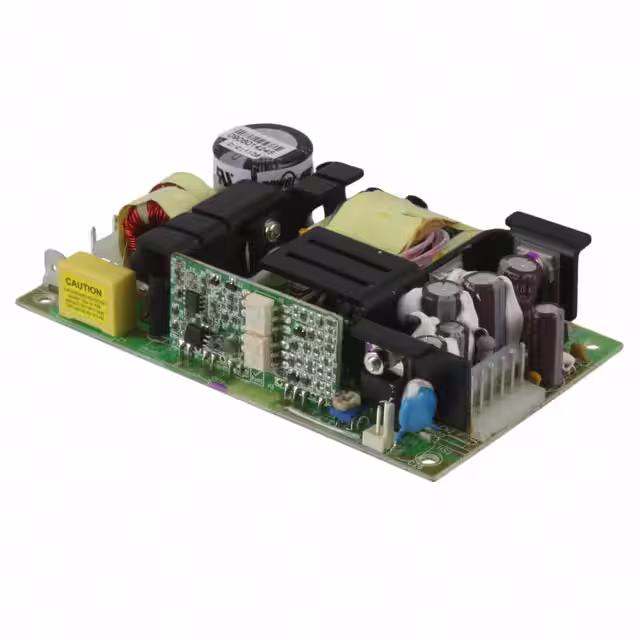

BLP55-1005GAC/DC CONVERTER 5V 55W |
1,262 |
|
Техническая документация |
BLP55 (55W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 55W | ITE (Commercial) | 4.242 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.23" H (127.0mm x 76.2mm x 31.2mm) | CB, CE |
|
LDA30F-12-SNAC/DC CONVERTER 12V 30W |
236 |
|
Техническая документация |
LDA (30W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 77% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.42" L x 2.56" W x 1.42" H (163.0mm x 65.0mm x 36.0mm) | cCSAus, CE, cURus, TUV |
|
FSA150018AAC/DC CONVERTER 18V 150W |
4,528 |
|
Техническая документация |
FSA150 (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 18V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | - | 91% | 0°C ~ 70°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 30.9mm) | CB, CE |
|

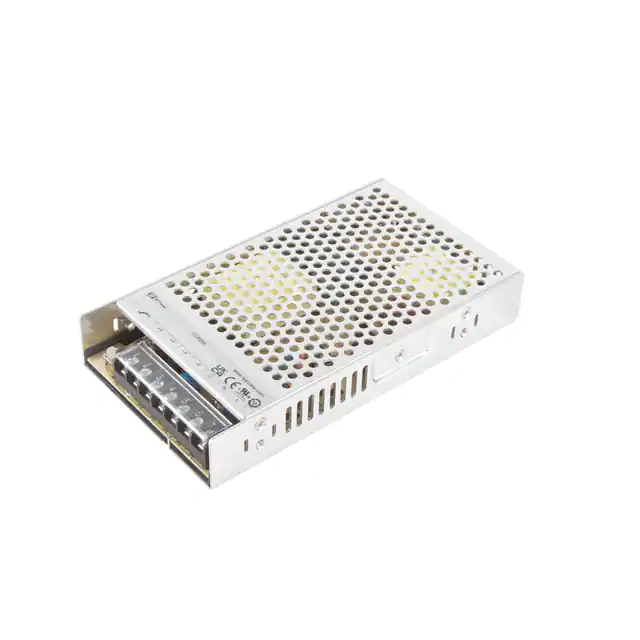

LCW200PS05AC/DC CONVERTER 5V 200W |
2,429 |
|
Техническая документация |
LCW200 (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial), Industrial | 4 kV | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CE, EN, UKCA, UL |
