Преобразователи переменного и постоянного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LO75-20B09EOPEN FRAME AC DC CONVERTERS 75.6 |
2,516 |
|
Техническая документация |
LO75-20BxxE (75W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 9V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 76W | ITE (Commercial) | 4 kV | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.06" L x 2.03" W x 1.08" H (103.2mm x 51.6mm x 27.4mm) | CB, CE, cURus, UKCA |
|
VOF-40C-S9AC/DC CONVERTER 9V 40W |
4,305 |
|
Техническая документация |
VOF-40C (40W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 9V | - | - | - | - | - | 4.444 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 84% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|
|
VOF-40C-S15AC/DC CONVERTER 15V 40W |
4,980 |
|
Техническая документация |
VOF-40C (40W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 2.667 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|
|
VOF-40C-S3AC/DC CONVERTER 3.3V 26W |
2,986 |
|
Техническая документация |
VOF-40C (40W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | ITE (Commercial) | 3 kV | 76% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|
QPS-20-5AC/DC CONVERTER 5V 20W |
2,989 |
|
Техническая документация |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 4 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | 76% | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) | CB, CE, cURus |
|
|
QPS-20-12AC/DC CONVERTER 12V 20W |
4,986 |
|
Техническая документация |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | 79% | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) | CB, CE, cURus |
|
|
QPS-20-3.3AC/DC CONVERTER 3.3V 20W |
2,965 |
|
Техническая документация |
QPS-20 (20W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | - | - | 4 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | 69% | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) | CB, CE, cURus |
|
VGS-75C-15-AAC/DC CONVERTER 15V 75W |
2,869 |
|
Техническая документация |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
|
VGS-75C-48-AAC/DC CONVERTER 48V 77W |
4,450 |
|
Техническая документация |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 91.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
|
VGS-75C-12-AAC/DC CONVERTER 12V 72W |
4,645 |
|
Техническая документация |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
VGS-75C-12-BAC/DC CONVERTER 12V 72W |
4,875 |
|
Техническая документация |
VGS-75C | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
VOF-45C-S9AC/DC CONVERTER 9V 40W |
1,438 |
|
Техническая документация |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 9V | - | - | - | - | - | 4.444 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 84% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|
|
VOF-45C-S15AC/DC CONVERTER 15V 45W |
3,568 |
|
Техническая документация |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|
|
VOF-45C-S3AC/DC CONVERTER 3.3V 26W |
4,527 |
|
Техническая документация |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | ITE (Commercial) | 3 kV | 76% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|
|
VOF-45C-S5AC/DC CONVERTER 5V 40W |
2,930 |
|
Техническая документация |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 82% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|

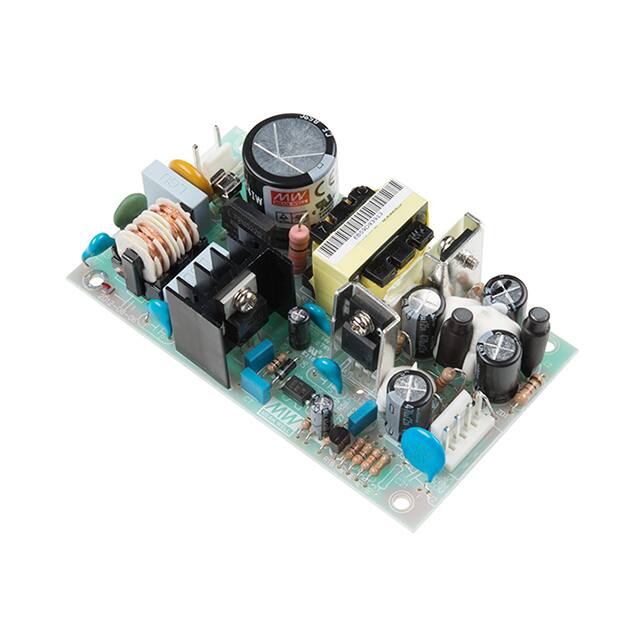

TOL-14101AC/DC CONVERTER +/-15V 25W |
4,070 |
|
Техническая документация |
PD-25 (25W) | Bulk | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 800 mA | 800 mA | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 60°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
PSK-S15C-24-TAC/DC CONVERTER 24V 15W |
2,560 |
|
Техническая документация |
PSK-S15C (15W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | 81% | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.0mm x 31.5mm x 32.3mm) | CB Scheme, EN, IEC, UL |
|
|
LM50-23B05-QAC/DC CONVERTER 5V 50W |
2,265 |
|
Техническая документация |
LM50-23Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | 83% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CCC, CE, cURus, UL |
|
|
LM50-23B05-CAC/DC CONVERTER 5V 50W |
1,851 |
|
Техническая документация |
LM50-23Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | 83% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CCC, CE, cURus, UL |
|
|
LM50-20B05-QAC/DC CONVERTER 5V 50W |
1,460 |
|
Техническая документация |
LM50-20Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
