Преобразователи переменного и постоянного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010503REL-150-4003 |
3,621 |
|
Техническая документация |
REL-150 (150W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 3.3V | 15V | -15V | - | - | 15 A | 8 A | 2 A | 2 A | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1010501REL-150-4001 |
2,714 |
|
Техническая документация |
REL-150 (150W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 15 A | 8 A | 2 A | 2 A | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1010507REL-150-4007 |
1,927 |
|
Техническая документация |
REL-150 (150W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 15 A | 3 A | 2 A | 2 A | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1010505REL-150-4005 |
1,163 |
|
Техническая документация |
REL-150 (150W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | -5V | 15V | -15V | - | - | 15 A | 8 A | 2 A | 2 A | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1011275REL-150-4013 |
1,454 |
|
Техническая документация |
REL-150 (150W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 7.25V | 30V | 24V | -24V | - | - | 8.7 A | 500 mA | 1.5 A | 1.5 A | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
MAH450US24-YISOLATED / 450W / VOUT:24 |
3,647 |
|
Техническая документация |
MAH450 (450W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 11.4 A | - | - | - | - | - | 319W (450W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CB, CE, cURus, FCC, UKCA |
|
1010897NXT-175-1004,RE STBY |
2,590 |
|
Техническая документация |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) | CE, cURus, TUV, UKCA |
|
VOF-350-12AC/DC CONVERTER 12V 300W |
1,755 |
|
Техническая документация |
VOF-350 (350W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|

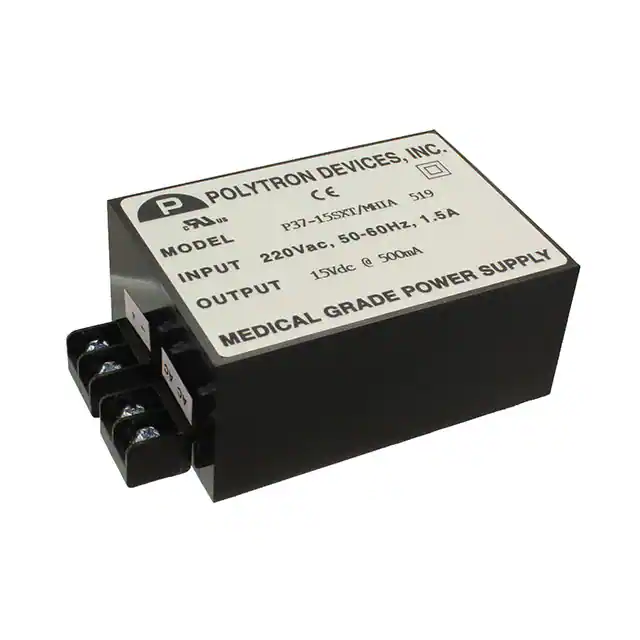

P37-15SXT/MHIAAC-DC POWER MODULE 15VDC500MA |
2,687 |
|
Техническая документация |
P3 | Bulk | Active | Enclosed | 1 | 105 ~ 220 VAC | 15V | - | - | - | - | - | 500 mA | - | - | - | - | - | - | Medical | 4 kV | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 1.56" H (104.1mm x 63.5mm x 39.6mm) | CE, cURus |
|
|
MAH450US48-YISOLATED / 450W / VOUT:48 |
3,950 |
|
Техническая документация |
MAH450 (450W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 319W (451W Forced Air) | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CB, CE, cURus, FCC, UKCA |
|
|
AMESP1000-48SMNZAC/DC Adapter 48V 1008W |
2,809 |
|
Техническая документация |
AMESP1000-MNZ (1008W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.48" L x 5.00" W x 1.59" H (190.0mm x 127.0mm x 40.4mm) | CE, UKCA |
|
1010437SRP-100-4005 |
3,433 |
|
Техническая документация |
SRP-100 (100W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | 12V | 8V | -8V | - | - | 12 A | 3 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1010288SRP-100-4004 |
3,419 |
|
Техническая документация |
SRP-100 (100W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 12 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1010287SRP-100-4003 |
1,692 |
|
Техническая документация |
SRP-100 (100W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 12 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1010285SRP-100-4001 |
4,784 |
|
Техническая документация |
SRP-100 (100W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 12 A | 3 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
CMP250PS48AC/DC CONVERTER 48V 250W |
4,461 |
|
Техническая документация |
CMP250 (250W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.00" W x 1.57" H (190.6mm x 101.6mm x 39.9mm) | - |
|
|
CMP250PS36AC/DC CONVERTER 36V 248W |
4,874 |
|
Техническая документация |
CMP250 (250W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 6.9 A | - | - | - | - | - | 248W | ITE (Commercial), Medical | 4 kV | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.00" W x 1.57" H (190.6mm x 101.6mm x 39.9mm) | - |
|
|
P52-15QXT/MHIAAC/DC CONVERTER 5V +/-15V |
3,040 |
|
Техническая документация |
P5 | Bulk | Active | Enclosed | 3 | 100 ~ 220 VAC | 5V | 15V | -15V | - | - | - | 250 mA | 100 mA | 100 mA | - | - | - | - | Medical | 4 kV | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 1.56" H (104.1mm x 63.5mm x 39.6mm) | CE, cURus |
|
ESS75-05AC/DC CONVERTER 5V 75W |
1,658 |
|
Техническая документация |
ESS75 (75W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 350 VDC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | Industrial, ITE (Commercial) | 3 kV | 89.5% | -10°C ~ 71°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.16" L x 1.30" W x 3.11" H (131.0mm x 33.0mm x 79.0mm) | CE, CSA, cURus, SEMKO |
|
ESS75-15AC/DC CONVERTER 15V 75W |
1,171 |
|
Техническая документация |
ESS75 (75W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 350 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Industrial, ITE (Commercial) | 3 kV | 89.5% | -10°C ~ 71°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.16" L x 1.30" W x 3.11" H (131.0mm x 33.0mm x 79.0mm) | CE, CSA, cURus, SEMKO |
