Преобразователи переменного и постоянного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM75-20B15-QAC/DC CONVERTER 15V 75W |
4,235 |
|
Техническая документация |
LM75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|
|
LM75-23B15-CAC/DC CONVERTER 15V 75W |
3,936 |
|
Техническая документация |
LM75-23Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|

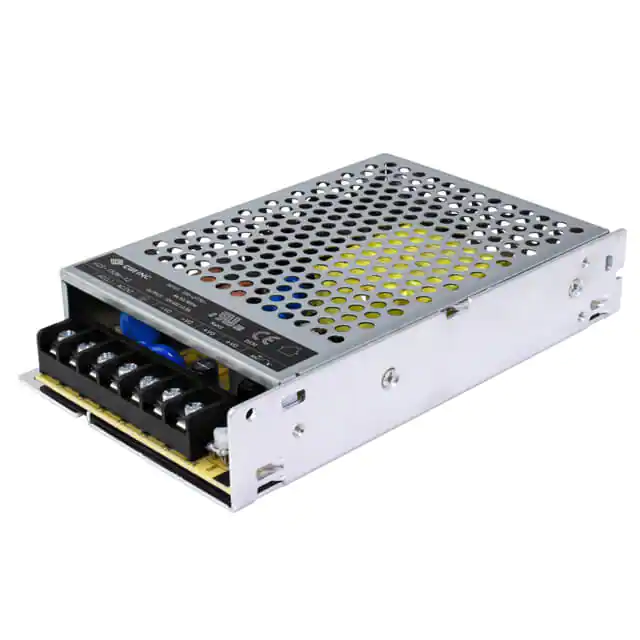

VGS-150W-15AC/DC CONVERTER 15V 150W |
3,554 |
|
Техническая документация |
VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
AMES75-48S277NZAC/DC CONVERTER 48V 77W |
2,774 |
|
Техническая документация |
AMES75-277NZ (77W) | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 90.5% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL |
|
AMES75-12S277NZAC/DC CONVERTER 12V 72W |
1,975 |
|
Техническая документация |
AMES75-277NZ (72W) | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL |
|
VGS-100C-36AC/DC CONVERTER 36V 101W |
3,860 |
|
Техническая документация |
VGS-100C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CE, cURus |
|

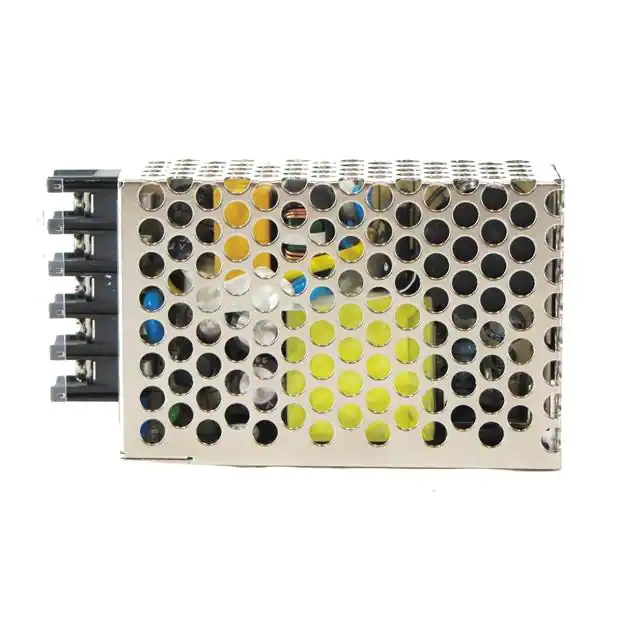

EPR-25-2424 V DC POWER SUPPLY25 W /1A |
2,380 |
|
Техническая документация |
EPR-25-24 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 26W | ITE (Commercial) | 1.5 kV | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.07" L x 2.01" W x 1.12" H (78.0mm x 51.0mm x 28.5mm) | CE, CQC, TUV, UL |
|

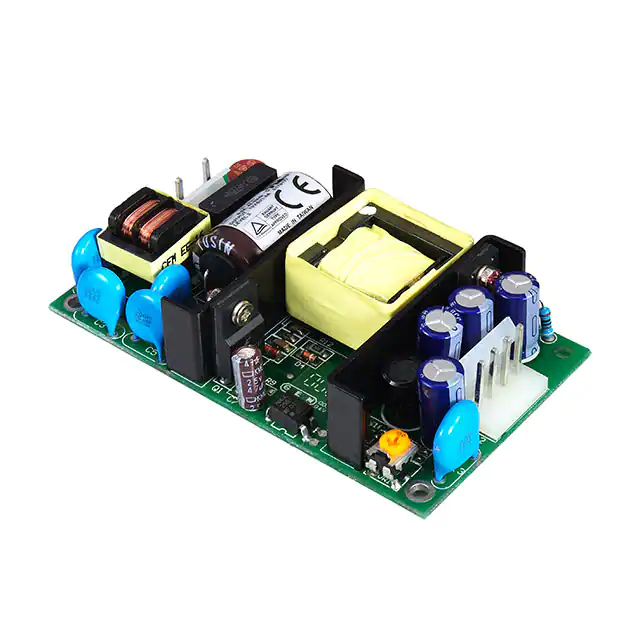

CFM2001SAC/DC CONVERTER 5V 22W |
1,626 |
|
Техническая документация |
CFM20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 22W | ITE (Commercial) | 4.242 kV | 72% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.91" H (88.9mm x 50.8mm x 23.0mm) | CE, cURus, TUV |
|
|
CFM2007SAC/DC CONVERTER 3.3V 15W |
3,728 |
|
Техническая документация |
CFM20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 15W | ITE (Commercial) | 4.242 kV | 66% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.91" H (88.9mm x 50.8mm x 23.0mm) | CE, cURus, TUV |
|
|
Switching Power Supply ALRS12V15ATAC/DC CONVERTER 12V 180W |
2,268 |
|
Техническая документация |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W | ITE (Commercial) | 1.5 kV | 83% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 7.80" L x 3.86" W x 1.65" H (198.1mm x 98.0mm x 41.9mm) | - |
|
|
Switching Power Supply ALRS24V7R5ATAC/DC CONVERTER 24V 180W |
3,185 |
|
Техническая документация |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | 83% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 7.80" L x 3.86" W x 1.65" H (198.1mm x 98.0mm x 41.9mm) | - |
|

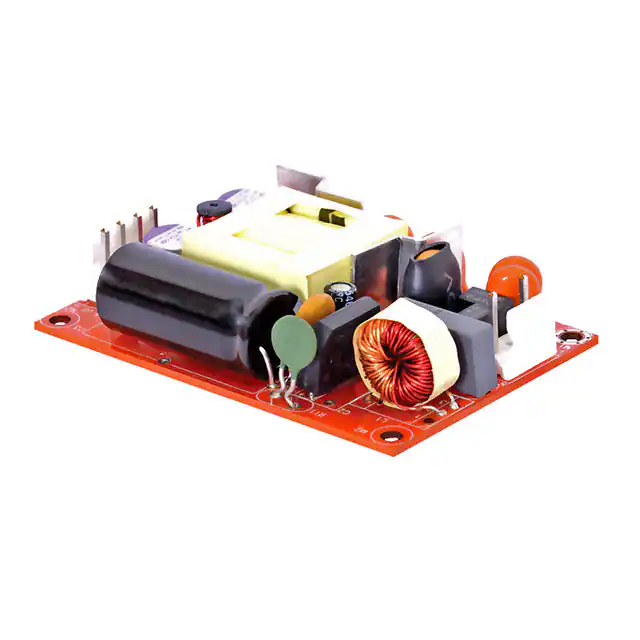

ABC41-1048LAC/DC CONVERTER 48V 40W |
2,817 |
|
Техническая документация |
ABC41 (40W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 830 mA | - | - | - | - | - | 40W | ITE (Commercial) | 4 kV | 85% | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.97" H (76.2mm x 50.8mm x 24.7mm) | CE, cUL, Nemko, UL |
|
|
LM100-20B24-CAC/DC CONVERTER 24V 108W |
3,941 |
|
Техническая документация |
LM100-20Bxx-C (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
.jpg)
|

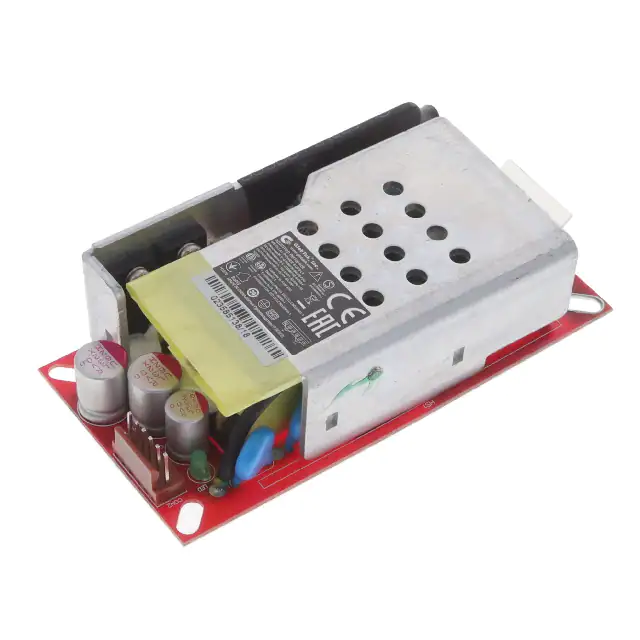

GTM96700-B4005-F(R)AC/DC CONVERTER 5V 40W |
3,934 |
|
Техническая документация |
- | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.5mm) | CB, CE, EAC, ETL, S-Mark, UkrSEPRO, VCCI |
|
VGD-75-D524AC/DC CONVERTER 5V 24V 73W |
4,059 |
|
Техническая документация |
VGD-75 | Box | Not For New Designs | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 373 VDC | 5V | 24V | - | - | - | - | 5 A | 2 A | - | - | - | - | 73W | Household Appliances, ITE (Commercial) | 3 kV | 84% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.82" L x 3.82" W x 1.18" H (122.5mm x 97.0mm x 30.0mm) | CB Scheme, IEC, UL |
|
|
LM75-20B36-CAC/DC CONVERTER 36V 76W |
4,083 |
|
Техническая документация |
LM75-20Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|
|
LM75-20B36-QAC/DC CONVERTER 36V 76W |
1,067 |
|
Техническая документация |
LM75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|
|
VMS-65-24-CNFAC/DC CONVERTER 2X24V 65W |
1,222 |
|
Техническая документация |
Artix® UltraScale+ | Tray | Not For New Designs | Enclosed | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 24V | 24V | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | Medical | 4 kV | 90% | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, cURus, UKCA |
|
|
VMS-65-5-CNFAC/DC CONVERTER 2X5V 50W |
1,613 |
|
Техническая документация |
Artix® UltraScale+ | Tray | Not For New Designs | Enclosed | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 5V | 5V | - | - | - | - | 10 A | - | - | - | - | - | 50W | Medical | 4 kV | 85% | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, cURus, UKCA |
|
|
VMS-65-12-CNFAC/DC CONVERTER 2X12V 65W |
1,470 |
|
Техническая документация |
Artix® UltraScale+ | Tray | Not For New Designs | Enclosed | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 12V | 12V | - | - | - | - | 5.42 A | - | - | - | - | - | 65W | Medical | 4 kV | 89% | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, cURus, UKCA |
