Преобразователи переменного и постоянного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-15W-48AC/DC CONVERTER 48V 15W |
1,220 |
|
Техническая документация |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 320 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | 83% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
LM35-10A0512-10AC/DC CONVERTER 5V 12V 32W |
4,234 |
|
Техническая документация |
LM35-10Axx (35W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | - | - | - | - | 4 A | 1 A | - | - | - | - | 32W | Household Appliances, ITE (Commercial) | 3 kV | 79% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.82" L x 3.54" W x 1.18" H (97.0mm x 90.0mm x 30.0mm) | CE, EN, UKCA |
|
|
LM35-10A0524-10AC/DC CONVERTER 5V 24V 35W |
1,035 |
|
Техническая документация |
LM35-10Axx (35W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | - | - | - | - | 2.2 A | 1 A | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 3 kV | 80% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.82" L x 3.54" W x 1.18" H (97.0mm x 90.0mm x 30.0mm) | CE, EN, UKCA |
|

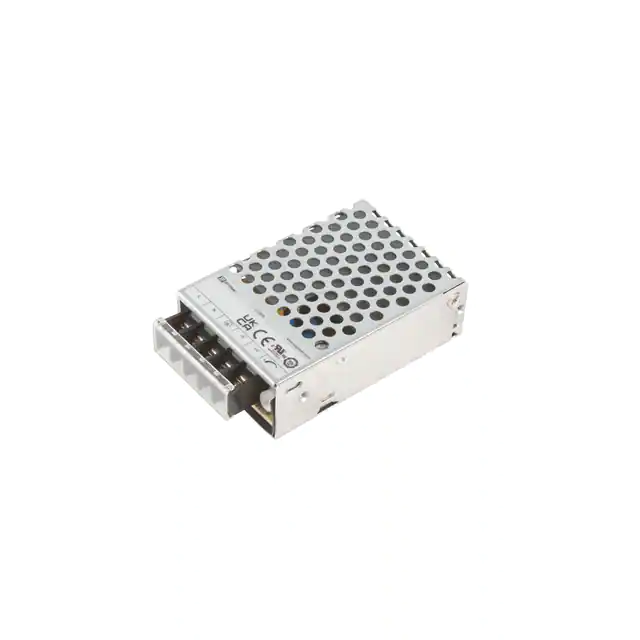

LCW25US15AC/DC CONVERTER 15V 26W |
1,682 |
|
Техническая документация |
LCW25 (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 26W | ITE (Commercial), Industrial | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.70" L x 2.17" W x 0.98" H (94.0mm x 55.0mm x 25.0mm) | CE, EN, UKCA, UL |
|
|
LCW25US48AC/DC CONVERTER 48V 27W |
1,998 |
|
Техническая документация |
LCW25 (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 570 mA | - | - | - | - | - | 27W | ITE (Commercial), Industrial | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.70" L x 2.17" W x 0.98" H (94.0mm x 55.0mm x 25.0mm) | CE, EN, UKCA, UL |
|
VGS-75C-24AC/DC CONVERTER 24V 77W |
2,393 |
|
Техническая документация |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
|
VGS-15W-3AC/DC CONVERTER 3.3V 10W |
1,524 |
|
Техническая документация |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 10W | ITE (Commercial) | 4 kV | 73% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|

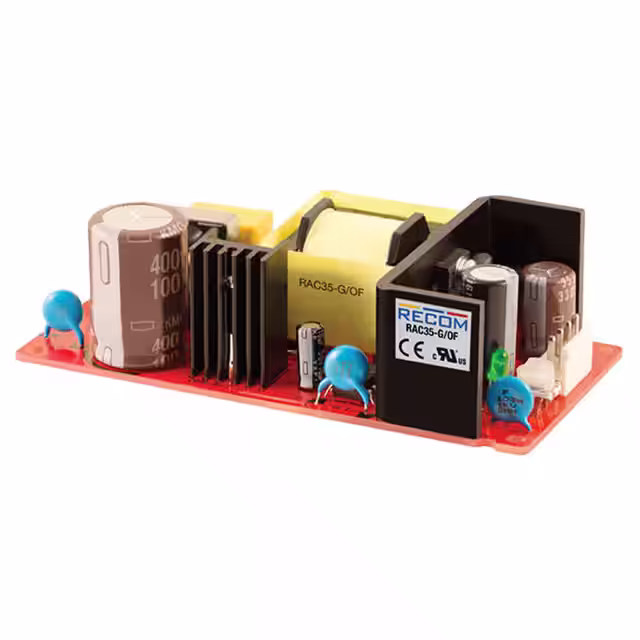

RAC35-12SG/OFAC/DC CONVERTER 12V 36W |
2,778 |
|
Техническая документация |
POWERLINE RAC35-G/OF (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | 81% | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.01" W x 1.10" H (101.6mm x 51.0mm x 28.0mm) | CE, cURus |
|
|
RAC35-05SG/OFAC/DC CONVERTER 5V 30W |
1,964 |
|
Техническая документация |
POWERLINE RAC35-G/OF (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 78% | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.01" W x 1.10" H (101.6mm x 51.0mm x 28.0mm) | CE, cURus |
|
LCS35US24AC/DC CONVERTER 24V 36W |
1,744 |
|
Техническая документация |
LCS35 (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial), Industrial | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, TUV, UL |
|

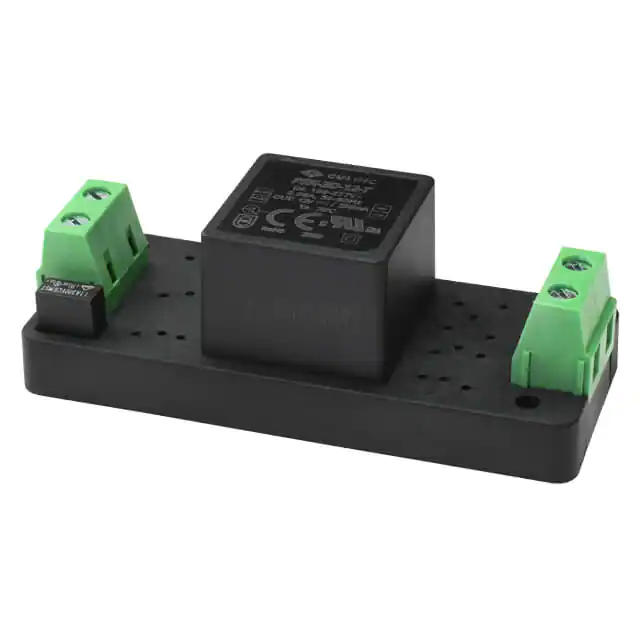

PSK-3D-9-TAC/DC CONVERTER 9V 3W |
2,944 |
|
Техническая документация |
PSK-3D (3W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | - | - | 333 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 4 kV | 78% | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.04" H (76.0mm x 31.5mm x 26.4mm) | CE, cURus |
|

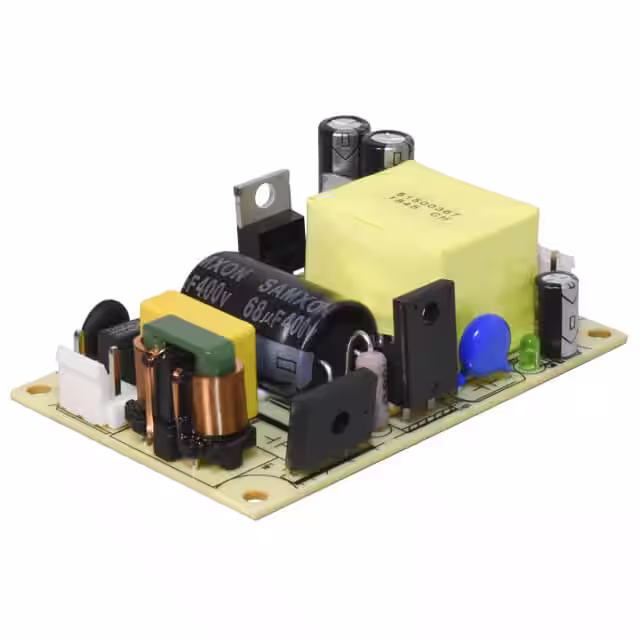

VOF-45C-S24AC/DC CONVERTER 24V 45W |
1,478 |
|
Техническая документация |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 1.875 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB Scheme, EN, IEC, UL |
|
LM50-23B48AC/DC CONVERTER 48V 53W |
4,525 |
|
Техническая документация |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CCC, CE, cURus |
|
RAC45-48SG/OFAC/DC CONVERTER 48V 48W |
2,043 |
|
Техническая документация |
POWERLINE RAC45-G/OF (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1 A | - | - | - | - | - | 48W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.01" W x 1.10" H (101.6mm x 51.0mm x 28.0mm) | CE, cURus |
|
PSK-5D-9-TAC/DC CONVERTER 9V 5W |
3,424 |
|
Техническая документация |
PSK-5D (5W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | - | - | 555 mA | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | 80.5% | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.04" H (76.0mm x 31.5mm x 26.4mm) | CE, cURus |
|

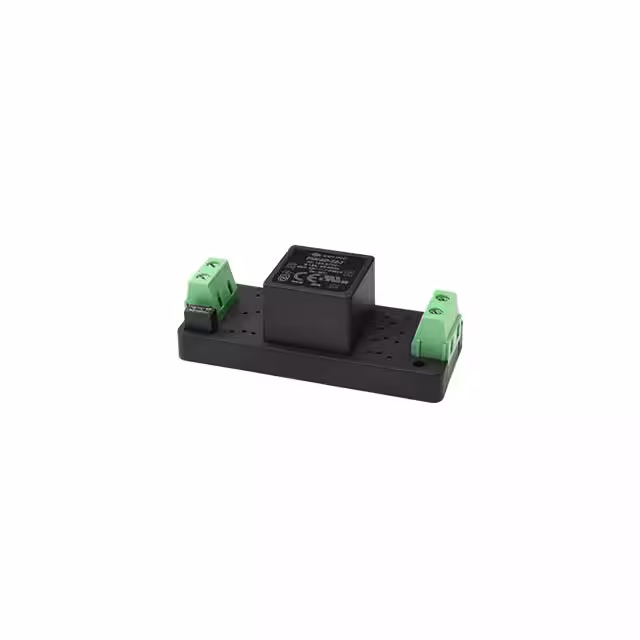

PSK-5D-15-TAC/DC CONVERTER 15V 5W |
1,394 |
|
Техническая документация |
PSK-5D (5W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 333 mA | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | 81.5% | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.04" H (76.0mm x 31.5mm x 26.4mm) | CE, cURus |
|
LO30-10B15AC/DC CONVERTER 15V 30W |
4,497 |
|
Техническая документация |
LO30-10Bxx (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CB, CE, cURus |
|
AMES75-5S277NZ-QAC/DC CONVERTER 5V 70W |
1,562 |
|
Техническая документация |
AMES75-277NZ (70W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Household Appliances, ITE (Commercial) | 4 kV | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL |
|
|
LM50-10A0524-14AC/DC CONVERTER 5V 24V 54W |
2,895 |
|
Техническая документация |
LM50-10Axx (50W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | - | - | - | - | 4 A | 1.4 A | - | - | - | - | 54W | Household Appliances, ITE (Commercial) | 3 kV | 80% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, EN |
|
|
LM50-10A0512-20AC/DC CONVERTER 5V 12V 54W |
4,138 |
|
Техническая документация |
LM50-10Axx (50W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | - | - | - | - | 6 A | 2 A | - | - | - | - | 54W | Household Appliances, ITE (Commercial) | 3 kV | 79% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, EN |
