Преобразователи переменного и постоянного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JSU120-1500AC/DC CONVERTER 12V 18W |
1,197 |
|
Техническая документация |
JSU120 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 18W | ITE (Commercial) | 3 kV | 85% | 0°C ~ 40°C | Universal Input | Rack Mount | 2.95" L x 1.89" W x 1.22" H (74.9mm x 48.0mm x 31.0mm) | CE, cULus |
|
PD-2505AC/DC CONVERTER +/-5V 25W |
3,058 |
|
Техническая документация |
PD-25 (25W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | -5V | - | - | - | - | 2.5 A | 2.5 A | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 73% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) | CB, CE, cURus, TUV |
|

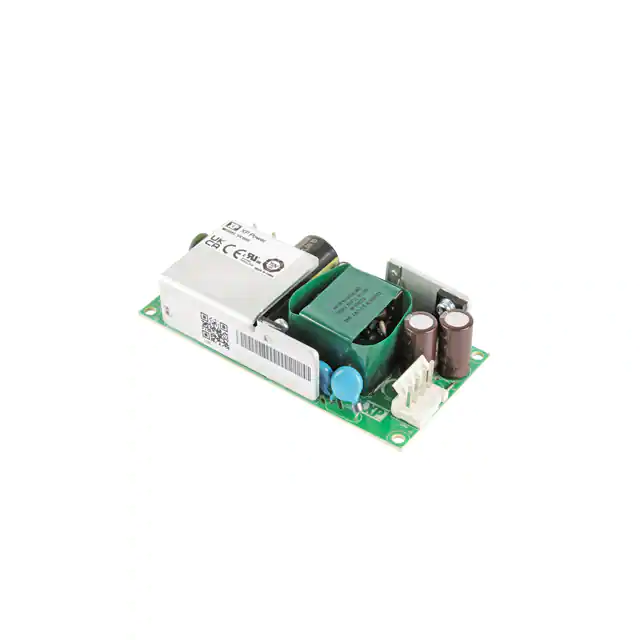

VCB60US24AC/DC CONVERTER 24V 60W |
1,687 |
|
Техническая документация |
VCB60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial) | 3 kV | 85% | -10°C ~ 60°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) | CB, CE, UKCA, UL |
|
|
VCB60US05AC/DC CONVERTER 5V 40W |
1,108 |
|
Техническая документация |
VCB60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | Household Appliances, ITE (Commercial) | 3 kV | 85% | -10°C ~ 60°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) | CB, CE, UKCA, UL |
|
LRS-100N2-24O/P +24V4.2A |
4,962 |
|
Техническая документация |
LRS-100N2 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W | ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, CQC, cURus, EAC, UKCA |
|
|
LRS-100N2-12O/P +12V8.5A |
3,141 |
|
Техническая документация |
LRS-100N2 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, CQC, cURus, EAC, UKCA |
|
|
PD-2515AC/DC CONVERTER +/-15V 24W |
4,076 |
|
Техническая документация |
PD-25 (25W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | -15V | - | - | - | - | 800 mA | 800 mA | - | - | - | - | 24W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
EPS-65-15-CAC/DC CONVERTER 15V 65W |
3,987 |
|
Техническая документация |
EPS-65 (65W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 4.34 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | CB, CE, cURus, TUV |
.jpg)
|

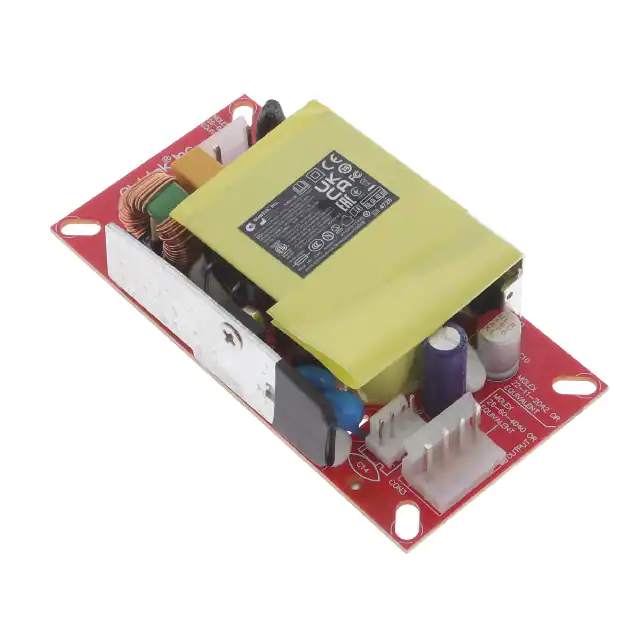

GTM43007-B3006-FW(R)AC/DC CONVERTER 6V 30W |
1,951 |
|
Техническая документация |
GTM43007-BWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 6V | - | - | - | - | - | 5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.93" H (101.6mm x 50.8mm x 23.6mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO |
|
IRM-45-5STAC/DC CONVERTER 5V 40W |
3,440 |
|
Техническая документация |
IRM-45 (45W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 83.5% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, TUV |
|
RD-50BAC/DC CONVERTER 5V 24V 54W |
4,515 |
|
Техническая документация |
RD-50 (50W) | Box | Active | Enclosed | 2 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 24V | - | - | - | - | 4 A | 1.4 A | - | - | - | - | 54W | ITE (Commercial) | 3 kV | 80% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | CB, CE, cURus, TUV |
|
|
IRM-45-15STAC/DC CONVERTER 15V 45W |
4,941 |
|
Техническая документация |
IRM-45 (45W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 88.5% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, TUV |
|
PT-65AAC/DC CONVERTER 5V 12V -5V 60W |
3,995 |
|
Техническая документация |
PT-65 (65W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -5V | - | - | - | 5.5 A | 2.5 A | 500 mA | - | - | - | 60W | ITE (Commercial) | 3 kV | 76% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
TMPW 5-105-T5 WATT AC/DC ENCAPSULATED CHASSI |
1,452 |
|
Техническая документация |
TMPW 5-T (5W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | 77% | -40°C ~ 70°C | - | Chassis Mount | 2.17" L x 1.70" W x 0.91" H (55.1mm x 43.2mm x 23.1mm) | CB, CE, cURus, EAC, UKCA |
|
PW1.0AC/DC CONVERTER 24V 12W |
3,230 |
|
Техническая документация |
PW1 | Box | Active | Linear | 1 | 24VAC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | - | - | 0°C ~ 55°C | Universal Input | Chassis Mount | 3.00" L x 2.25" W x 2.00" H (76.0mm x 57.2mm x 50.8mm) | - |
|
|
PD-25AAC/DC CONVERTER 5V 12V 25W |
2,141 |
|
Техническая документация |
PD-25 (25W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | - | - | - | - | 2.1 A | 1.2 A | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 71% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
PT-45AAC/DC CONVERTER 5V 12V -5V 41W |
1,911 |
|
Техническая документация |
PT-45 (45W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -5V | - | - | - | 3 A | 2 A | 300 mA | - | - | - | 41W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
EPS-45-12-CAC/DC CONVERTER 12V 45W |
4,820 |
|
Техническая документация |
EPS-45 (45W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | CB, CE, cURus, TUV |
|
|
PD-25BAC/DC CONVERTER 5V 24V 25W |
3,416 |
|
Техническая документация |
PD-25 (25W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | - | - | - | - | 1.2 A | 800 mA | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 77% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
RAC05-24SK/C14AC/DC CONVERTER 24V 5W |
4,664 |
|
Техническая документация |
POWERLINE RAC05-K/C14 (5W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 210 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | 84% | -25°C ~ 70°C (With Derating) | Universal Input | Panel Mount | 2.17" L x 1.12" W x 0.83" H (55.1mm x 28.5mm x 21.0mm) | CB, CE, cURus, FCC |
