Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
101184904NXT-400M-3001-04 |
4,929 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Open Frame | 3 | 100 ~ 240 VAC | 5V | 15V | - | -15V | - | - | 50 A | 10 A | 5 A | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101184903NXT-400M-3001-03 |
3,954 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Open Frame | 3 | 100 ~ 240 VAC | 5V | 12V | - | -15V | - | - | 50 A | 10 A | 5 A | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101184901NXT-400M-3001-01 |
3,983 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Open Frame | 3 | 100 ~ 240 VAC | 5V | 12V | - | - | - | - | 50 A | 10 A | 5 A | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101184902NXT-400M-3001-02 |
3,056 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Open Frame | 3 | 100 ~ 240 VAC | 5V | 15V | - | -12V | - | - | 50 A | 10 A | 5 A | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
MINT1500A5614E01AC/DC CONVERTER 56V 350W |
1,145 |
|
![]() Техническая документация |
MINT1500 (500W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 270 VAC | 56V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 350W (500W Forced Air) | Medical | 4 kV | 93% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.30" W x 1.50" H (177.8mm x 83.8mm x 38.2mm) | CE |
![]() |

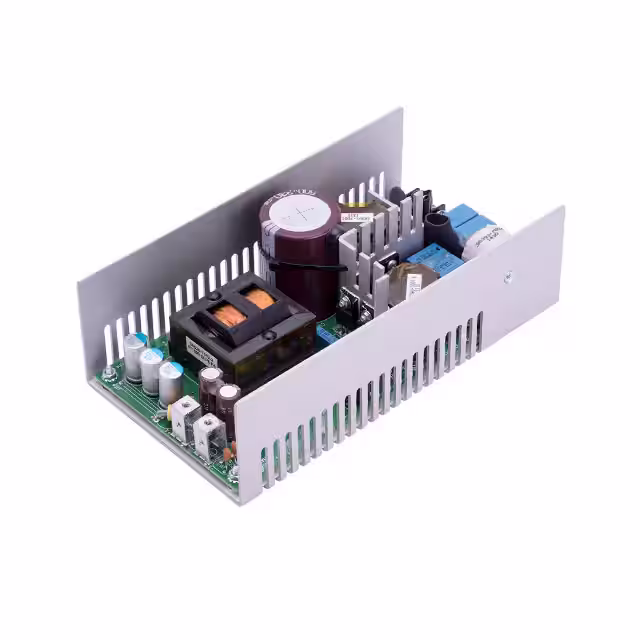

LU500S24TAC/DC CONVERTER 24V 500W |
4,856 |
|
![]() Техническая документация |
LU500 (500W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 305 VAC | 24V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | 93% | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 7.25" L x 4.00" W x 2.20" H (184.2mm x 101.6mm x 55.9mm) | CE |
![]() |
1011625CE-225-4002 |
2,328 |
|
![]() Техническая документация |
CE-225 (225W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 25 A | 8 A | 2 A | 2 A | - | - | 225W | ITE (Commercial), Medical | - | 74% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.00" H (203.2mm x 120.7mm x 50.8mm) | CE, cURus, TUV, UKCA |
![]() |
1011630CE-225-4007 |
1,473 |
|
![]() Техническая документация |
CE-225 (225W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 12V | 15V | -15V | - | - | 25 A | 8 A | 2 A | 2 A | - | - | 225W | ITE (Commercial), Medical | - | 74% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.00" H (203.2mm x 120.7mm x 50.8mm) | CE, cURus, TUV, UKCA |
![]() |
1011627CE-225-4004 |
3,384 |
|
![]() Техническая документация |
CE-225 (225W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -5.2V | 12V | -12V | - | - | 25 A | 8 A | 2 A | 2 A | - | - | 225W | ITE (Commercial), Medical | - | 74% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.00" H (203.2mm x 120.7mm x 50.8mm) | CE, cURus, TUV, UKCA |
![]() |
1011626CE-225-4003 |
3,501 |
|
![]() Техническая документация |
CE-225 (225W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 3.3V | 15V | -15V | - | - | 25 A | 8 A | 2 A | 2 A | - | - | 225W | ITE (Commercial), Medical | - | 74% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.00" H (203.2mm x 120.7mm x 50.8mm) | CE, cURus, TUV, UKCA |
![]() |
1011622COCE-225-3001CO |
2,352 |
|
![]() Техническая документация |
CE-225 (225W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 25 A | 8 A | 2 A | - | - | - | 225W | ITE (Commercial), Medical | - | 74% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.17" H (203.2mm x 120.7mm x 55.1mm) | CE, cURus, TUV, UKCA |
![]() |
1011623COCE-225-3002CO |
4,256 |
|
![]() Техническая документация |
CE-225 (225W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 25 A | 8 A | 2 A | - | - | - | 225W | ITE (Commercial), Medical | - | 74% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.17" H (203.2mm x 120.7mm x 55.1mm) | CE, cURus, TUV, UKCA |
![]() |
101187802CHNXT-400M-2003-02,SB/RE/PF CH |
1,228 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 12V | -12 ~ 15V | - | - | - | - | 25 A | 10 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101187701CHNXT-400M-2002-01,SB/RE/PF CH |
4,369 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 12 ~ 15V | - | - | - | - | 50 A | 10 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101187601CHNXT-400M-2001-01,SB/RE/PF CH |
1,163 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 24 ~ 28V | - | - | - | - | 50 A | 5 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101187902CHNXT-400M-2004-02,SB/RE/PF CH |
3,710 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 15V | -12 ~ 15V | - | - | - | - | 20 A | 10 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101187801CHNXT-400M-2003-01,SB/RE/PF CH |
2,059 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 12V | -12 ~ 15V | - | - | - | - | 25 A | 10 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101187901CHNXT-400M-2004-01,SB/RE/PF CH |
2,167 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 15V | -12 ~ 15V | - | - | - | - | 20 A | 10 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101187702CHNXT-400M-2002-02,SB/RE/PF CH |
3,658 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 12 ~ 15V | - | - | - | - | 50 A | 10 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
![]() |
101187602CHNXT-400M-2001-02,SB/RE/PF CH |
2,789 |
|
![]() Техническая документация |
NXT-400 (400W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 24 ~ 28V | - | - | - | - | 50 A | 5 A | - | - | - | - | 400W | ITE (Commercial), Medical | - | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
